WATER LEVEL SENSORS

PRECISION WATER LEVEL MEASUREMENT SYSTEMS

ChatGPT Image Mar 16, 2026, 11_55_26 PM_edited.jpg

Pressure-Based Depth Measurement

True real-time water level data instead of simple contact detection, helping eliminate false readings from cascading water

ChatGPT Image Mar 16, 2026, 11_58_57 PM_edited.jpg

Live On-Screen Readings

Encoder + pressure sensor based depth tracking, and exportable logging for drawdown testing

Designed for True Portability

Compact, lightweight systems that one person can deploy quickly in the field.

REACH WATER LEVEL SENSORS

REACH ACCESSORIES

Real Time Pressure Sensing for Real-World Wells

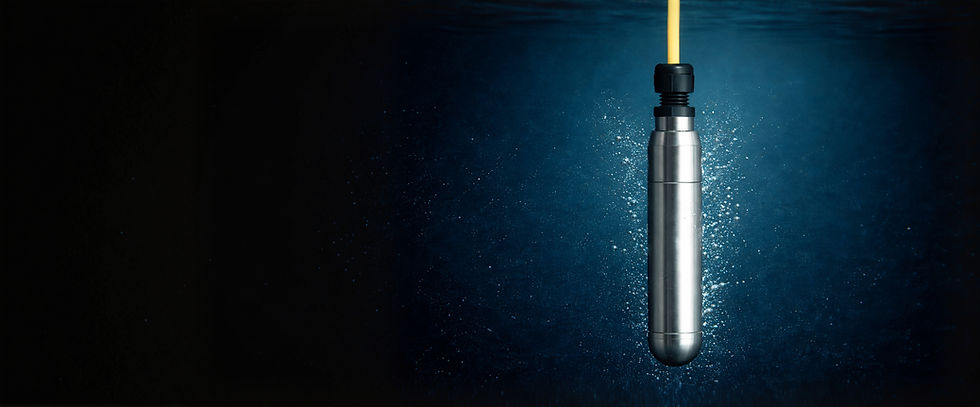

The ProxyViz water level meter delivers accurate, real-time depth measurement for demanding field work in wells and boreholes. Each probe uses true pressure-based sensing instead of simple contact detection, giving users a more reliable way to measure water level while also enabling full well profiling and drawdown analysis when used with the reel encoder. Integrated temperature sensing adds another layer of useful field data, while live readings and graphing are displayed directly on the controller for immediate interpretation. Built from corrosion-resistant stainless steel, the probe is designed for rugged field use and includes a waterproof serviceable connector that supports the modular ProxyViz product platform.

Smarter Control for Better Inspections

The ProxyViz hand controller is a compact, high-performance control center for water level measurement and well profiling. Its 7" IPS daylight-readable touchscreen provides a clear, interactive view of live depth and temperature data, while responsive onboard processing ensures smooth real-time readings, graphing, and system control in the field.

Running an embedded software platform optimized for well service work, the controller features an intuitive interface, live data display, and user-accessible USB and network ports. Depth data from the pressure sensor and reel encoder is shown in real time, logged directly to a USB drive, and made available for profiling, record keeping, and drawdown testing. A removable sunshield improves screen visibility in bright outdoor conditions.

Water level dip meter displaying 154.9 ft

Portable by Design. Ready by Nature.

The ProxyViz deployment system is designed for fast, simple setup in the field. Each system comes fully equipped with essential features to eliminate complex configuration choices. Reel can include an integrated level wind, depth encoder, pipe hanger, and adjustable brake, paired with a 5 mm polyurethane-jacketed tether reinforced with Kevlar and IP69-rated connectors for durability in harsh environments.

All systems include quick-swappable battery packs and a fast charger to keep inspections moving. Weighing under 40 lbs, every system is true one-person portable. For transport and protection, the Core and Max systems can be upgraded with a rugged hard carry case with a custom foam insert to keep everything organized and ready for deployment.
