Reach Series - Core

The Reach Core water level meter is a practical, field-ready measurement system within the ProxyViz lineup, designed for users who need dependable water level data in a straightforward, professional package. It builds on the same ProxyViz focus on modern digital hardware, rugged field usability, and clear on-screen information, while delivering a more capable alternative to conventional buzzer-style water level meters.

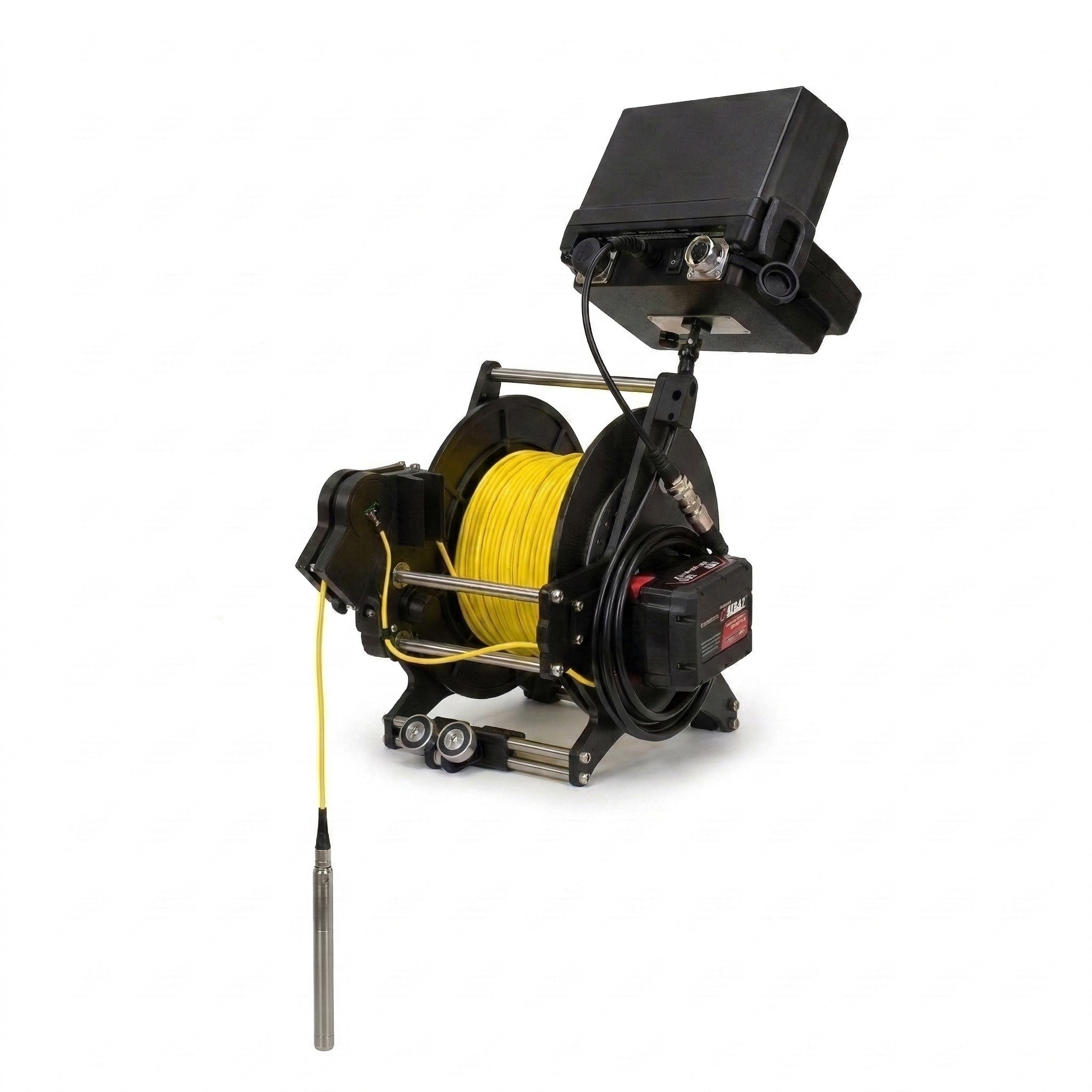

The system comes standard with 50 m of tether on a reel, with upgrade options available up to 150 m for deeper well applications. Like all ProxyViz reel-based systems, the reel includes an integrated encoder that feeds depth data directly into the controller display, providing the information needed for well profile calculations during use. This gives operators a more complete and more useful picture of well conditions than a basic water contact indicator alone.

Rather than only alerting the user when the probe reaches water, the Reach Core is built around pressure-based depth measurement, allowing it to detect and display actual water depth conditions in the well. In combination with the reel encoder, this enables accurate water level measurement throughout deployment and helps generate a clearer profile of the well. The data is shown in real time on the included 7-inch controller, where it can be monitored live, logged during use, and saved directly to the USB drive for recordkeeping and future review. Because the sensor can remain submerged, the system is also well suited for drawdown testing and monitoring changing water conditions over time.

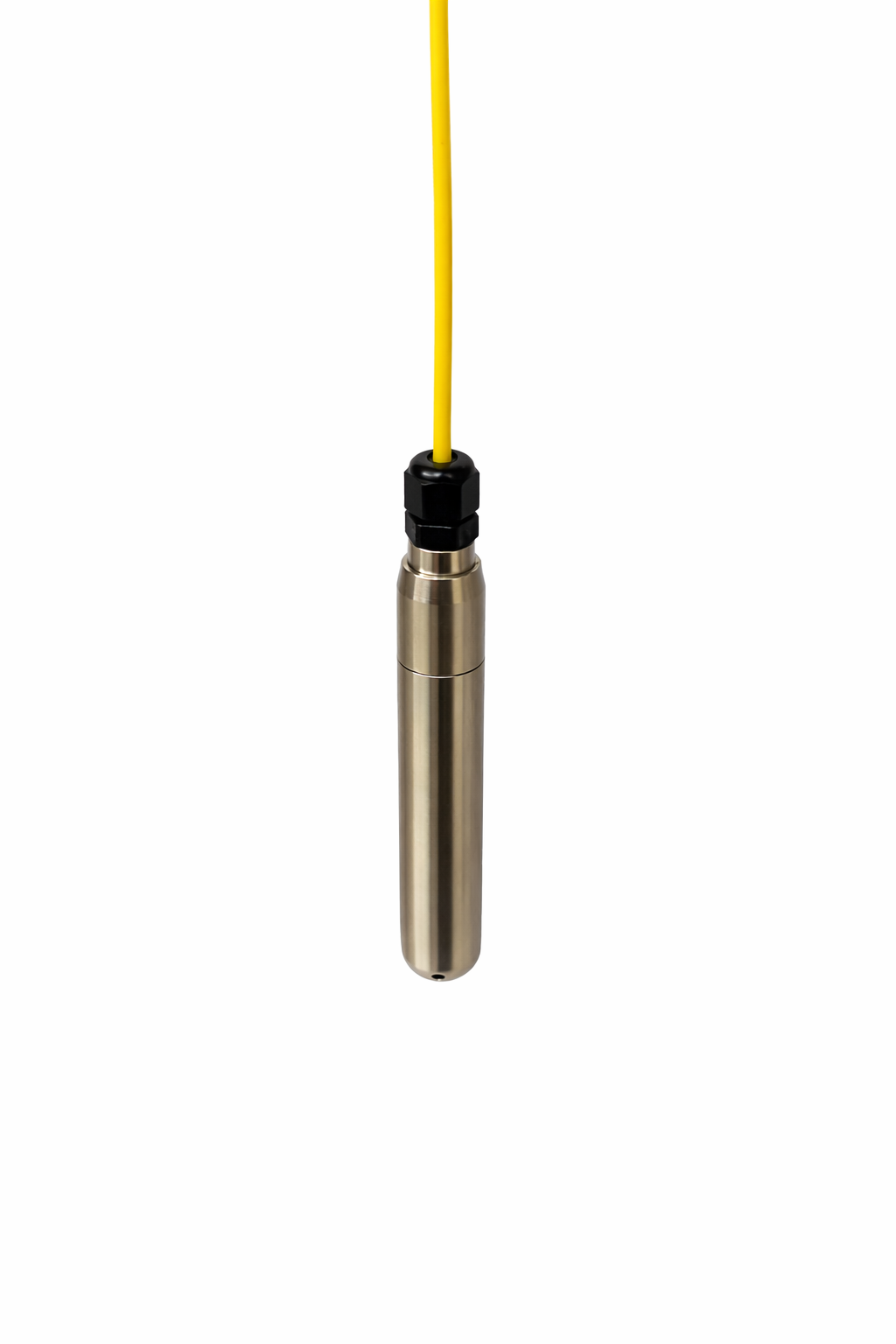

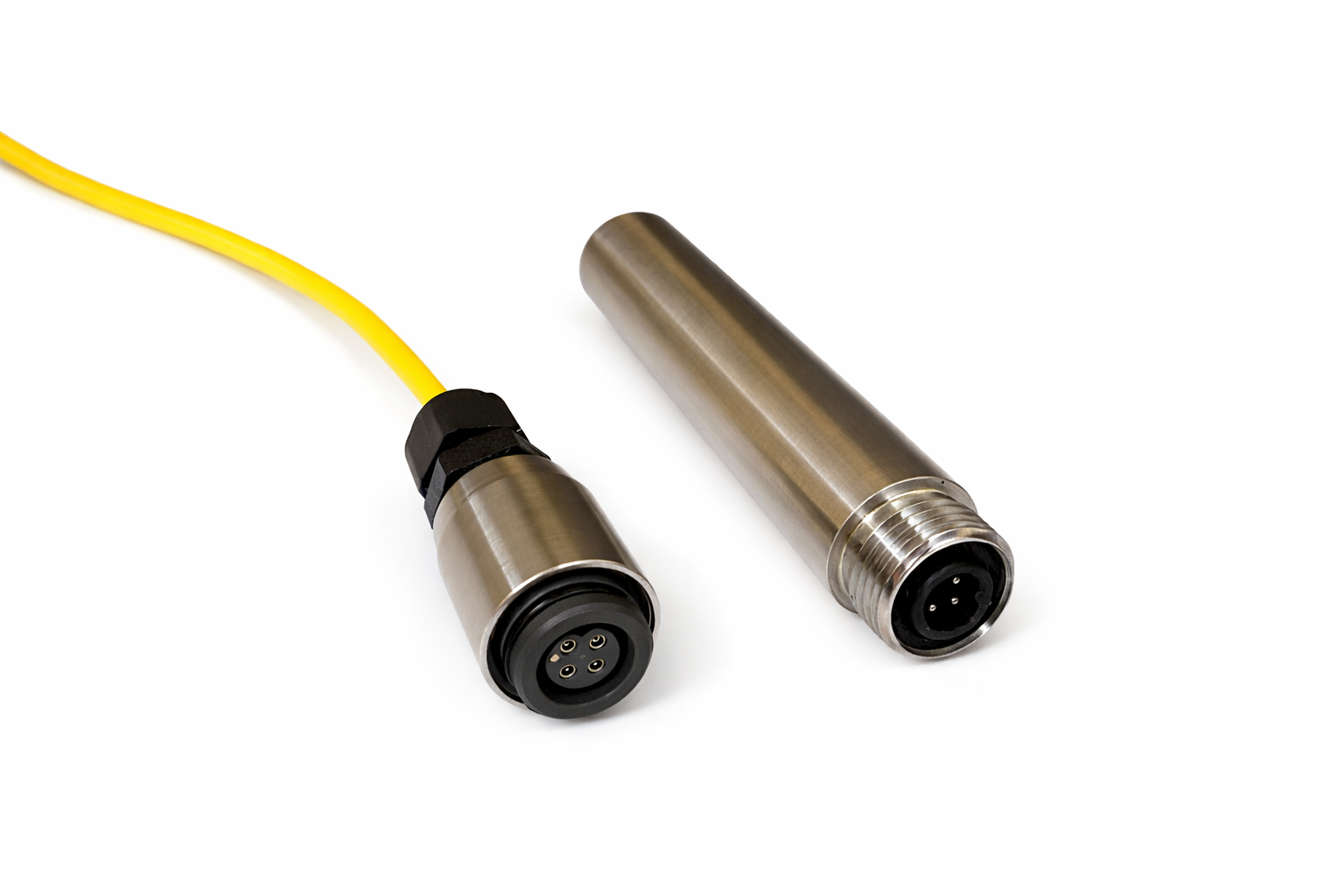

The probe itself is built from stainless steel for durability in demanding field environments and is fitted with a proper waterproof connector for easier service and replacement. This supports the broader modular design theme across ProxyViz products, making the system more practical to maintain while keeping the field hardware robust and professional.

The Reach Core is ideal for drillers, pump installers, service technicians, and groundwater professionals who want a modern digital water level meter that is easy to deploy, more informative than legacy designs, and ready for everyday field use. It offers a strong step forward from standard water level probes by combining reel-based deployment, real-time on-screen data, modular serviceability, and pressure-based measurement in a compact ProxyViz platform.

Included:

Qty 1 - Reach Sensor Probe with Depth and Water Temperature Sensors

Qty 1 - 50m Tether (optional upgrade to 150m)

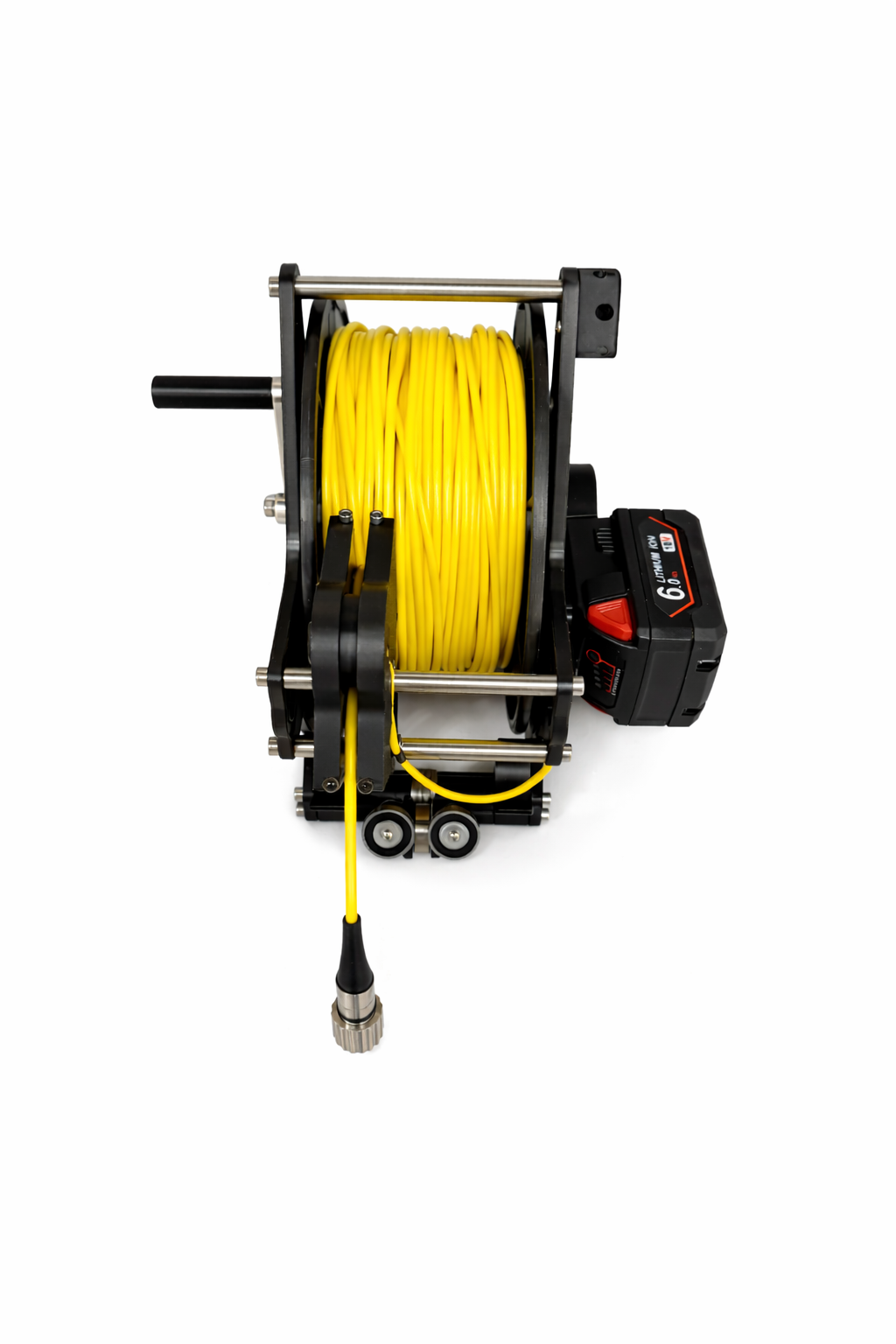

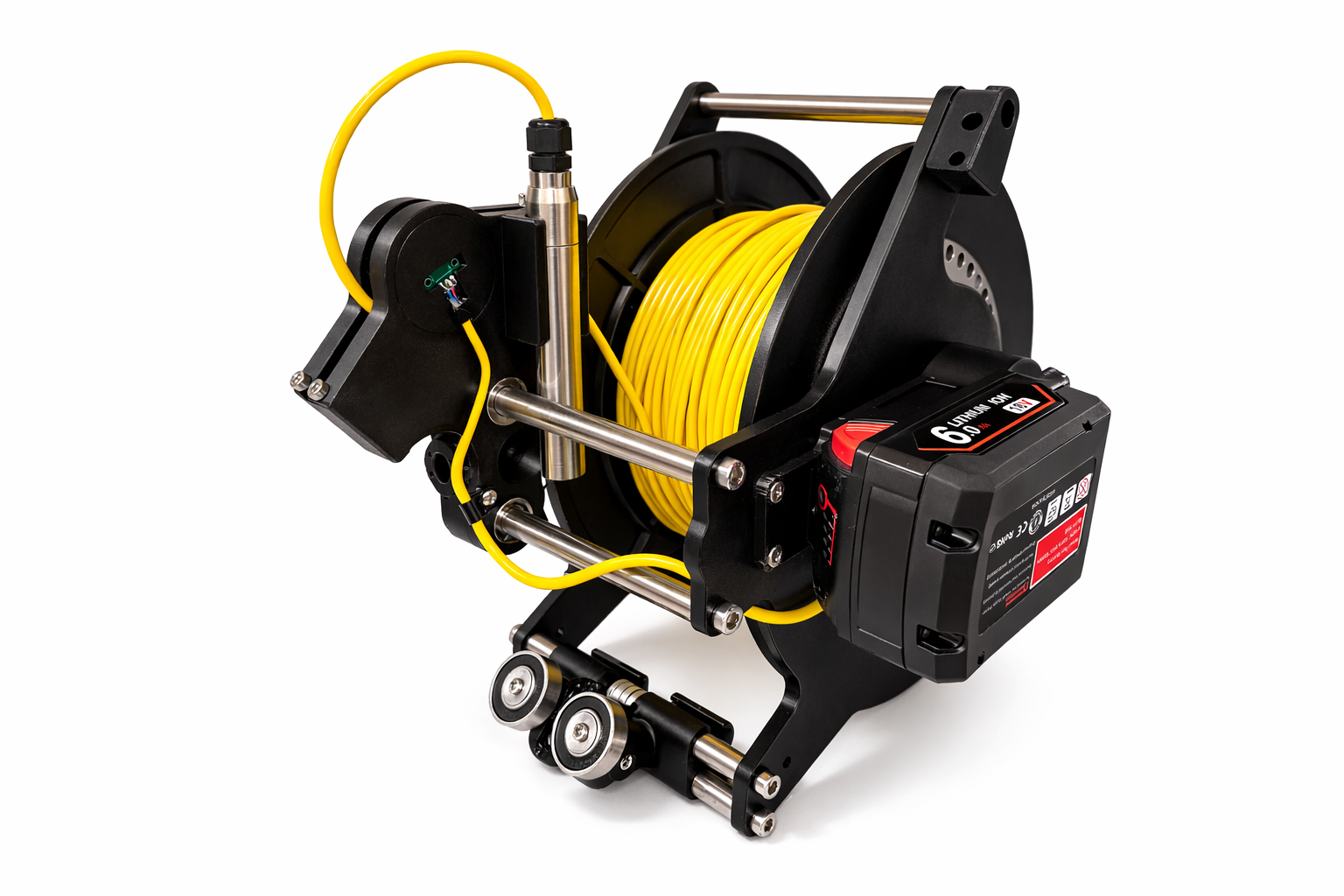

Qty 1 - Tether Reel with Detent Brake and Encoder

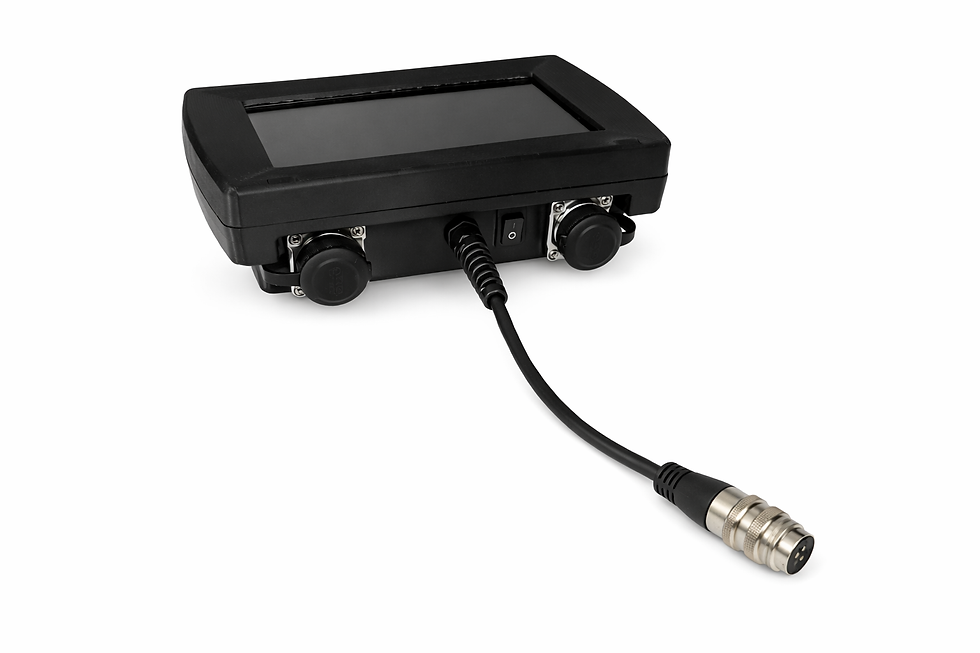

Qty 1 - Hand Controller with 7" Touchscreen

Qty 1 - Sunshield

Qty 1 -M18 X 5.0 ah Battery Pack

Qty 1 - M18 Charger

Qty 1 - 64 GB USB Drive
